         Shell Contact-PatchSet

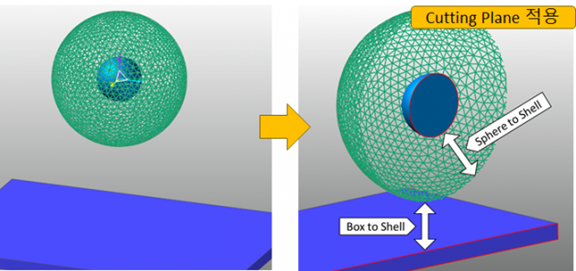

像上图一样, 将Flexible Body(FFlex)的Shell要素定义为一个PatchSet,可以定义同时定义PatchSet的上下两个方向的接触.


让我们以下列方式应用:


STEP 1

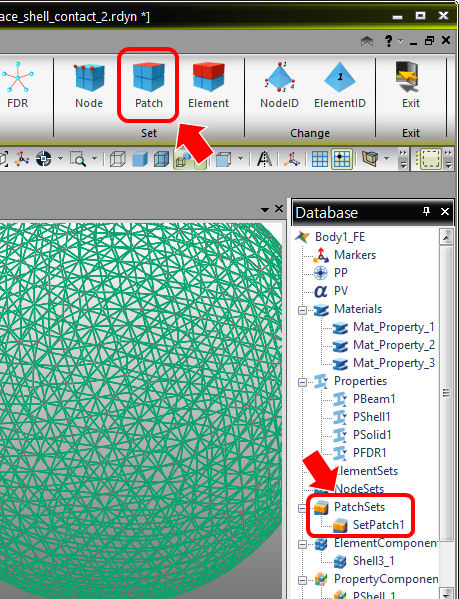

先定义用Shell要素构成的FFlex Body里的PatchSet.

Shell Contact-PatchSet



STEP 2

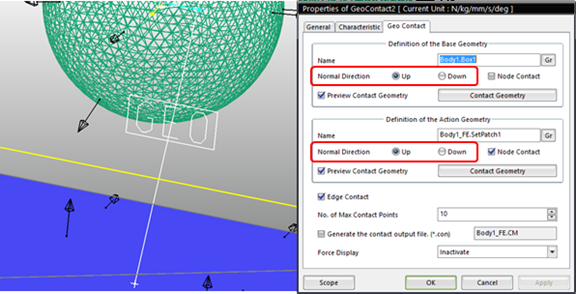

定义Contact(接触), 对于各自的接触设置正确的接触的垂直方向。 (在本示例里我们使用‘GeoContact’。)

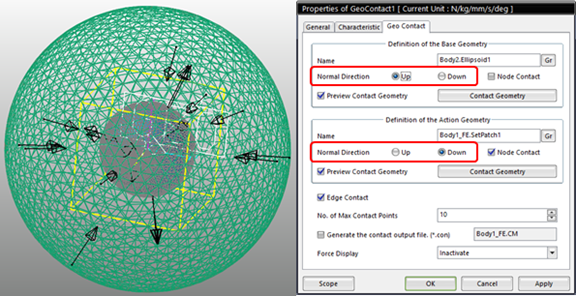

Shell Contact-PatchSet


Shell Contact-PatchSet
